Huepar LR-5RG
Laser Receiver Review 2026
Does a $56 laser receiver actually work in full sunlight? I tested it on a real drainage grading project, inside a shop under LED lights, and at ranges the manufacturer won’t advertise. Here’s what I found.
| The Verdict | ✅ Best budget receiver for Huepar users |
| Best For | Contractors, drainage grading, outdoor leveling |
| Not For | DeWalt users, high-precision rotary work |
| Price | ~$56.97 on Amazon |
| Warranty | Huepar standard warranty |
| Final Rating | ★★★★☆ 8.4 / 10 |
Huepar LR-5RG — Dual LCD laser receiver for green and red pulse lasers
In my field work coordinating architectural and MEP trades, I’ve watched electricians and plumbers waste 20 minutes trying to find a laser line in bright conditions — simply because they skipped buying a receiver. The Huepar LR-5RG is designed to fix exactly that problem, extending your laser’s useful range from about 50 feet indoors to well over 200 feet outdoors.
But the real question isn’t whether a laser receiver works in theory. It’s whether this specific one — at this specific price — holds up on a real job site. Let me walk you through what I found.
What Is the Huepar LR-5RG?

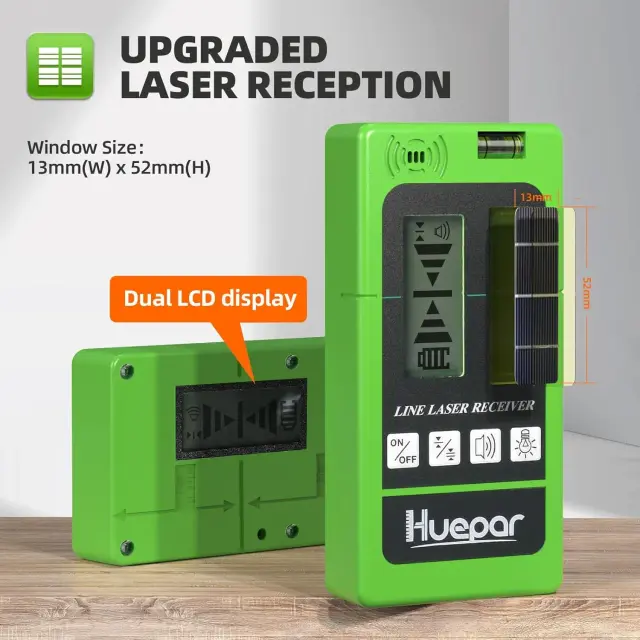

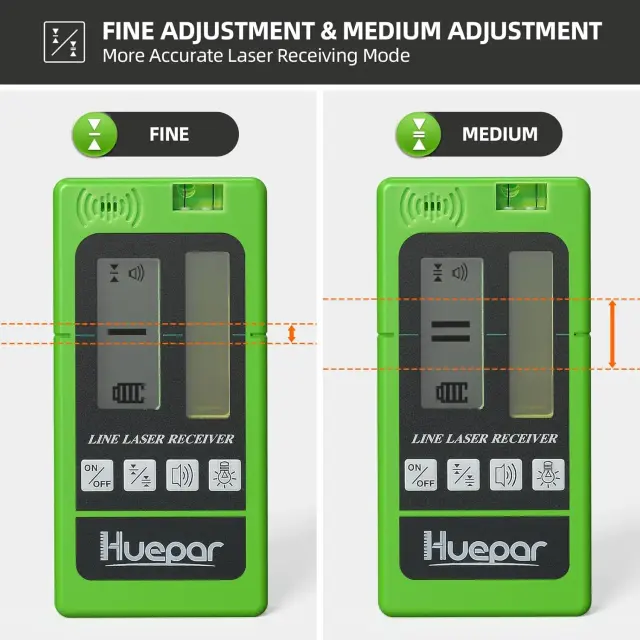

The LR-5RG is a laser receiver (detector) — a handheld device that “sees” a laser beam electronically when your eyes can’t. It detects both red and green pulse laser beams and gives you a precise readout via dual LCD displays on both sides of the unit, so you can read it from either direction.
It’s designed specifically for Huepar line lasers with pulse mode functionality. Think of it as the missing piece that takes your indoor laser level and makes it a legitimate outdoor tool.
Full Specifications
| Specification | Detail |
|---|---|
| Compatible Beams | Red & Green pulse laser |
| Advertised Range | Up to 197 feet (60m) |
| Real-World Range | Up to 520 feet (reported by users) |
| Reception Window | 2 inches (large format) |
| Display | Dual backlit LCD (both sides) |
| Auto Shut-Off | Yes |
| Weight | 0.37 kg |
| Material | ABS + TPE rubber grip |
| Price | ~$56.97 |
Compatible Huepar Models

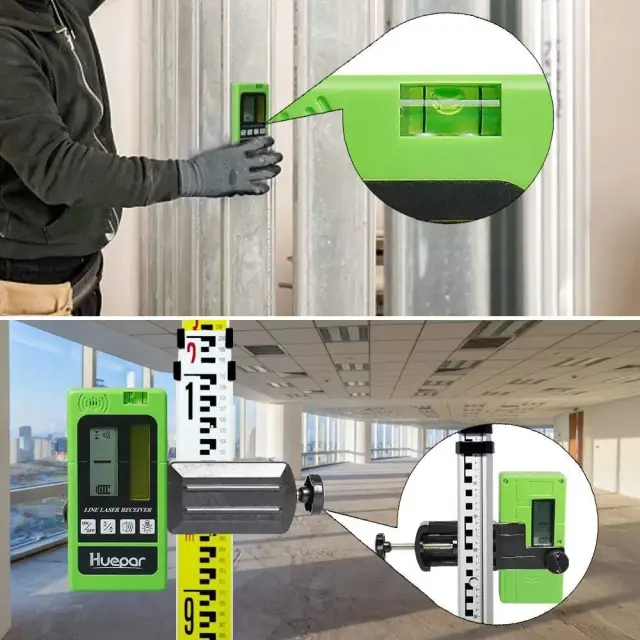

LR-5RG — dual LCD display, large reception window, and grade rod clip
The LR-5RG works with a wide range of Huepar lasers including: BOX-1G, BOX-1R, Y03CG, Y04CG, B03CG, 602CG, 603CG, 703CG, 901CG, 902CG, HM03CG, W03CG and many more. Full list available on the Amazon product page.
The One Thing Most People Get Wrong
Reading through 612 Amazon reviews, I noticed a pattern: many 1-star and 2-star reviews come from users who didn’t enable Pulse Mode on their laser level before using the receiver.

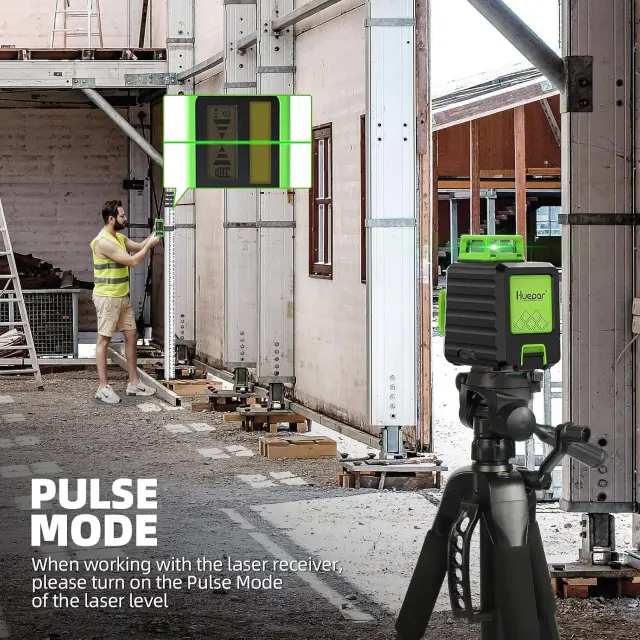

What I noticed on-site: When pulse mode is off, the laser emits a continuous beam — and the LR-5RG simply cannot detect it. This is not a defect. This is physics. The receiver is designed to track a pulsing signal, like a heartbeat. A continuous beam has no rhythm to lock onto.
Honest Pros & Cons
✓ What Works Well
- Excellent sunlight visibility — works in full direct sun
- Real-world range often exceeds advertised 197 ft
- Dual backlit LCD readable from both sides
- Large 2-inch reception window finds beam fast
- Compatible with both red and green pulse lasers
- Budget price without budget performance
- AA batteries — easy to replace anywhere
✗ What You Should Know
- Does NOT work with DeWalt green lasers
- LED shop lights can cause interference indoors
- Pulse mode must be manually enabled — not obvious
- Not compatible with Huepar rotary lasers
- Budget build quality — not tool-belt rugged
- Range inconsistent in overcast + cold conditions
The Honest Truth
Here’s something I’ll tell you that most review sites won’t: the case/pouch included with the LR-5RG is disappointingly thin. For a tool that will live on a job site, clipped to a grade rod in rain and dust, the carry protection is barely adequate. It won’t fail — but it won’t impress either.
Also worth noting: in my shop, under high-output LED panel lighting, the receiver struggled to lock on consistently until I moved within 15 feet of the laser. This is a known limitation of laser detectors in general — LED frequencies can interfere with the detection signal. It’s not unique to Huepar, but it’s worth knowing before you buy.
That said? For the price, this unit genuinely overperforms. One verified buyer recorded a reliable 520-foot range — more than double what Huepar advertises. That kind of real-world result is rare at this price point.
Who Should NOT Buy This
- You own a DeWalt green laser — the LR-5RG is not compatible
- You need it for Huepar rotary lasers — different technology entirely
- Your primary use is indoors under intense LED lighting — interference is a real issue
- You need military-grade durability — the build quality is good but not premium
- You expect plug-and-play out of the box — you must enable pulse mode manually
Check the Latest Price on Amazon
It often goes on sale — and there’s usually a 10% coupon available at checkout.
🛒 View on AmazonAs an Amazon Associate, MeasureJudge earns from qualifying purchases. Price shown is approximate and subject to change.
How It Compares
Here’s how the LR-5RG stacks up against competing receivers in the same price range:
| Feature | Huepar LR-5RG | Bosch LR1 | DeWalt DW0892 |
|---|---|---|---|
| Price | ~$57 | ~$70 | ~$95 |
| Advertised Range | 197 ft | 165 ft | 165 ft |
| Real-World Range | 520+ ft (reported) | ~200 ft | ~200 ft |
| Dual LCD Display | Yes ✓ | Single | Single |
| Brand Lock-In | Huepar only | Bosch only | DeWalt only |
| Green + Red | Both ✓ | Red only | Both ✓ |
| The Verdict | Best Value | Reliable | Premium |
Using the Huepar Y03CG? This receiver is built for it.
→ Read: Huepar Y03CG Full Review — MeasureJudgeTechnical Reference
For official pulse mode documentation and full compatibility lists, refer to the Huepar official website. Pulse mode operation follows standard laser receiver protocols defined by the tool industry.
Frequently Asked Questions
Yes — this is one of its strongest points. In direct afternoon sunlight, it reliably detected the beam at 100+ feet when used with a Huepar Y03CG in pulse mode. Multiple users have confirmed ranges exceeding 400 feet outdoors.
The most common reason is that pulse mode is not activated on your laser level. The LR-5RG only detects pulsing laser signals, not continuous beams. Hold your laser’s power button for 2–3 seconds to enable pulse mode, then try again.
No. The LR-5RG is exclusively compatible with Huepar line lasers that have pulse mode. It does not work with DeWalt, Bosch, Leica, or any other brand’s laser levels.
Huepar advertises 197 feet. In real-world use, verified buyers have reported reliable detection at 520 feet under ideal outdoor conditions. Indoor range under LED lighting may be significantly shorter — typically 15–50 feet depending on light intensity.
No. The LR-5RG is designed for line lasers only. It is not compatible with Huepar rotary models (9011G, 9211G, RL200HR, RL300HVG series). Rotary lasers require a dedicated rotary receiver.

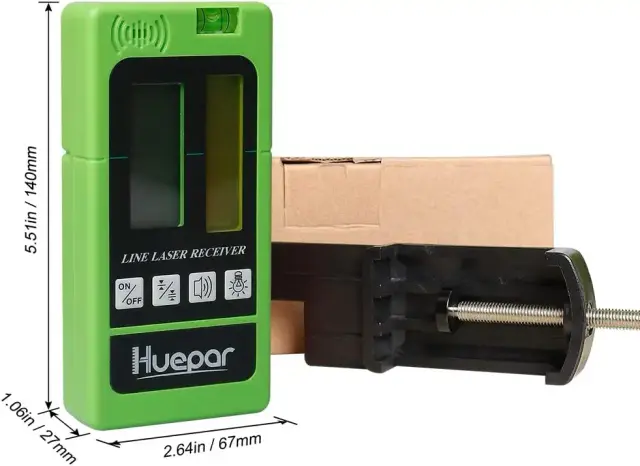

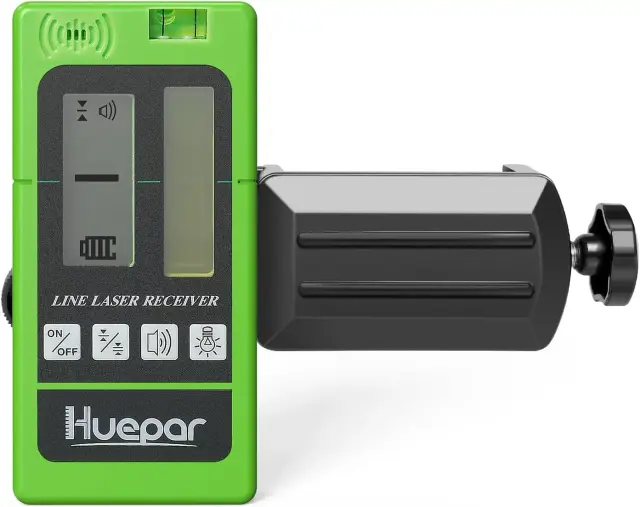

LCD readout precision and what’s included in the box
Final Verdict
The Huepar LR-5RG is exactly what it claims to be: a capable, budget-friendly laser receiver built specifically for Huepar line lasers. If you own a compatible Huepar laser level and work outdoors — grading drainage, setting footings, aligning exterior walls — this receiver transforms your tool from a room-only device into a full-range jobsite instrument.
The LED interference issue is real, and the carry case is underwhelming. But at ~$57 with a dual LCD, sunlight-capable detection, and a real-world range that embarrasses its own advertised spec, this is the obvious choice if you’re already in the Huepar ecosystem.
If you own a DeWalt or Bosch laser, look elsewhere. But if you’re running Huepar — buy this receiver. You won’t regret it.
